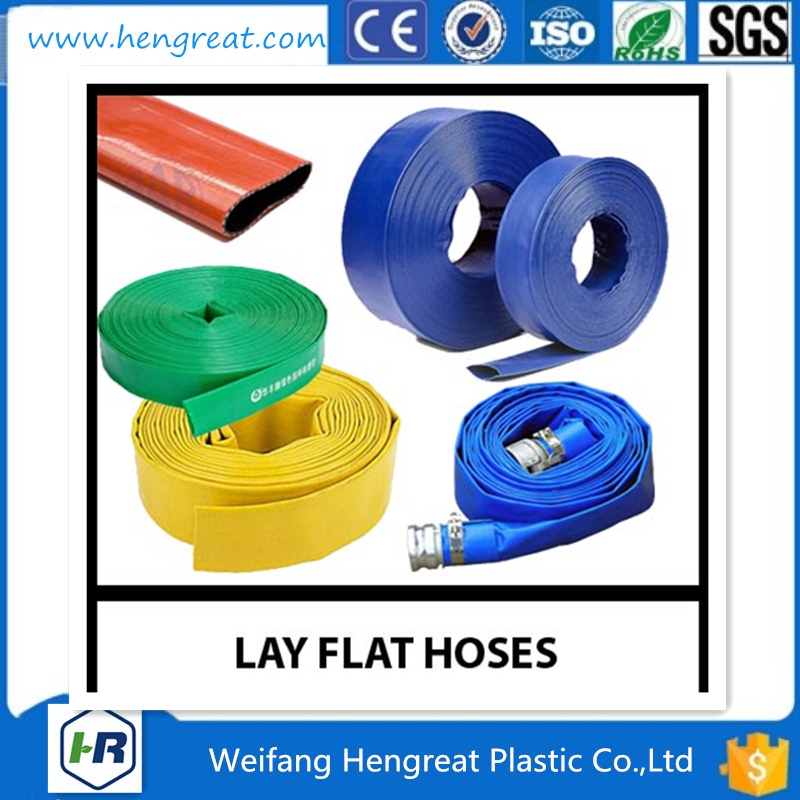

Low-pressure PVC Lay Flat hose
This type is divided into plastic coated and one-step type. One-step molding, surface brightness is good; Plastic coated type have thick wall thickness, wear-resisting. Avirulent insipidity. Optional plastic quick coupling, aluminum quick coupling, suitable for agricultural irrigation.
The product description
1) lay flat hose used for conveying water under normal working condition
2) Choosing new material with high strength polyester reinforcement
3) Specification range from inch to 8inch
4) the working pressure from 2 Bar to 4 Bbar
Scope of application:
Widely used in agricultural irrigation water, irrigation facilities, equipment and industrial low pressure environment of water pollution
Product features:
1) choose high-strength dacron line, high quality PVC raw material,
2) one-step molding product, lining and plastic coated process once complete and more uniform distribution of raw materials, no crystal point, without air hole, inside and outside the wall smooth.
3) product acid corrosion resistance, high working pressure, anti-aging, non-toxic, extension ability.
4) working temperature: - 10 ℃ to 65 ℃
SIZE |
INNER DIAMETER |
WORK PRESSURE |
BURST PRESSURE |
STANDARD LENGTH |
INCH |
MM |
Bar |
Bar |
METER |
1” |
25±1.0 |
2 |
6 |
100 |
25±1.0 |
4 |
12 |
100 |
|
1-1/4” |
32±1.0 |
2 |
6 |
100 |
32±1.0 |
4 |
12 |
100 |
|
1-1/2” |
38±1.0 |
2 |
6 |
100 |
38±1.0 |
4 |
12 |
100 |
|
2” |
50±1.0 |
4 |
12 |
100 |
2-1/2” |
64±1.0 |
4 |
12 |
100 |
3” |
75±1.0 |
4 |
12 |
100 |
3-1/2” |
90±1.0 |
4 |
12 |
100 |
4” |
102±1.0 |
4 |
12 |
50/100 |
5” |
127±1.0 |
2 |
6 |
50/100 |
127±1.0 |
4 |
12 |
50/100 |
|
6” |
152±1.0 |
2 |
6 |
50 |
152±1.0 |
4 |
12 |
50 |
|
8” |
203±1.0 |
2 |
6 |
50 |
203±1.0 |
4 |
12 |
50 |
